AEM X-Series Wideband UEGO AFR Sensor Gauge

Technical Specifications:

• Brand: AEM Performance Electronics

• Part Number (MPN): 30-0300

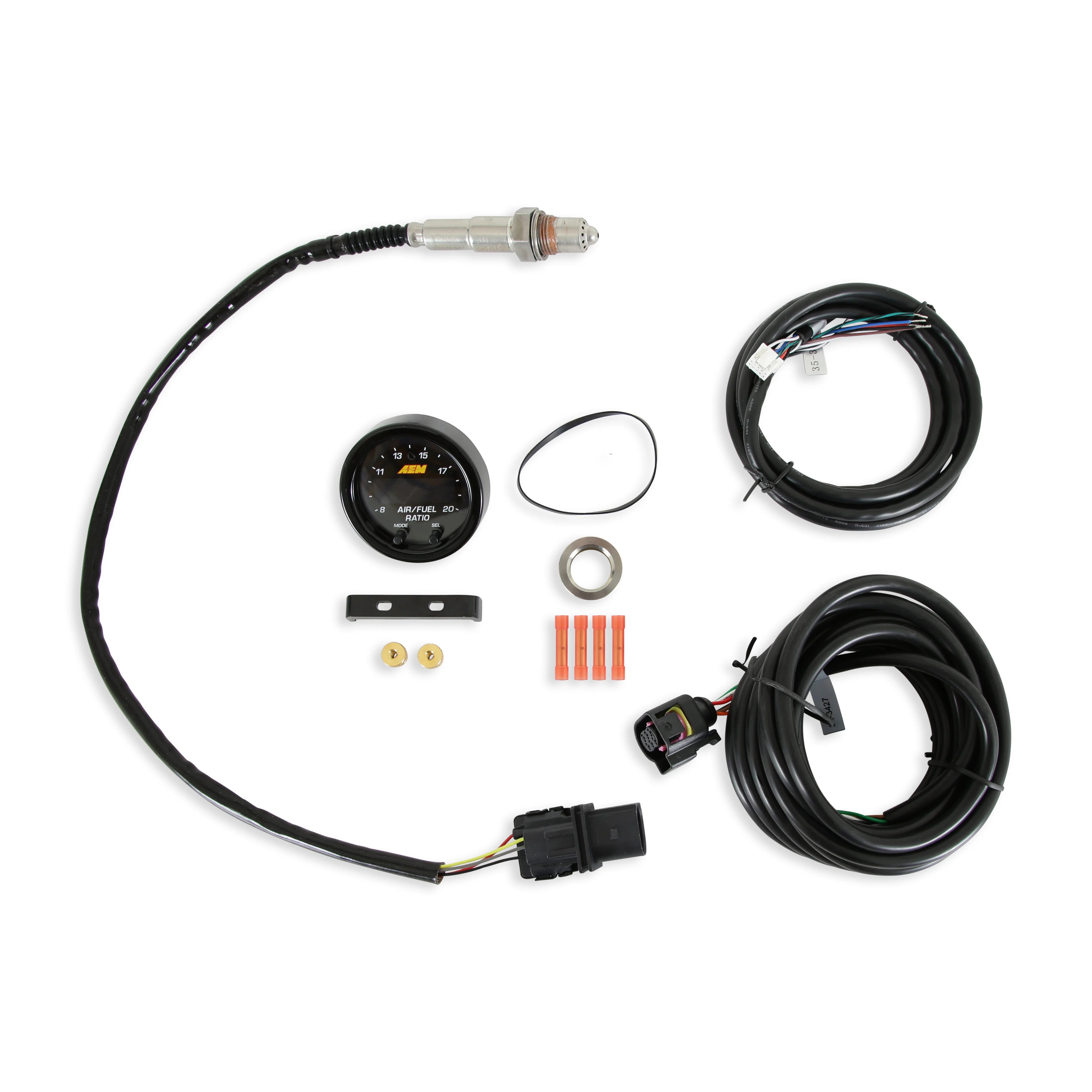

• Product Type: X-Series Digital Wideband UEGO AFR Controller Gauge Kit

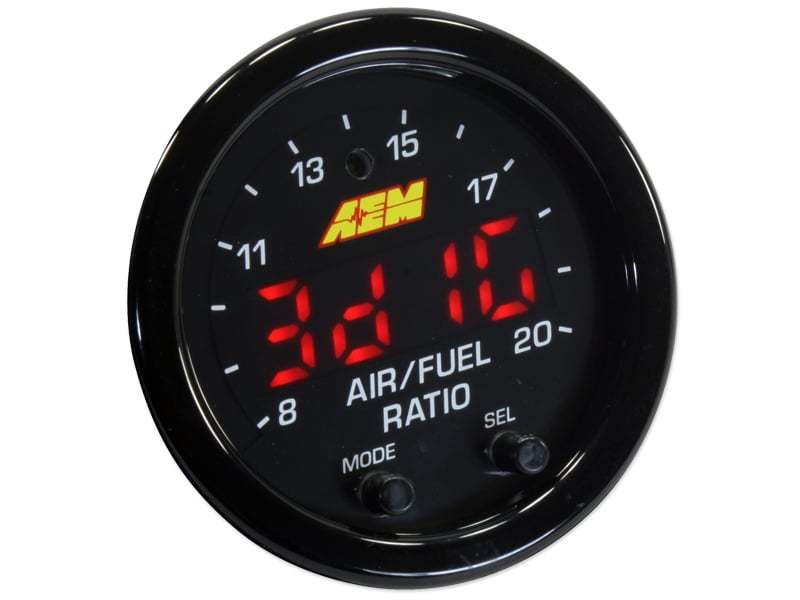

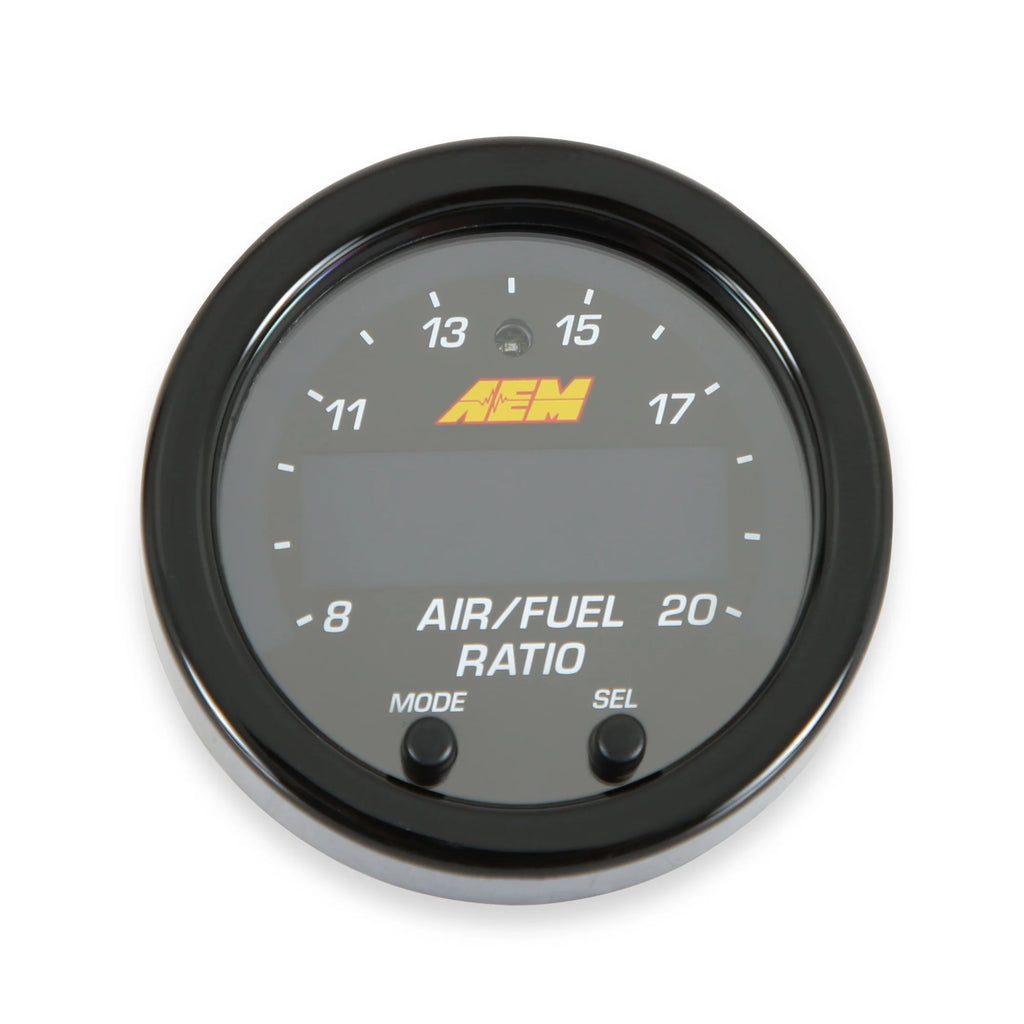

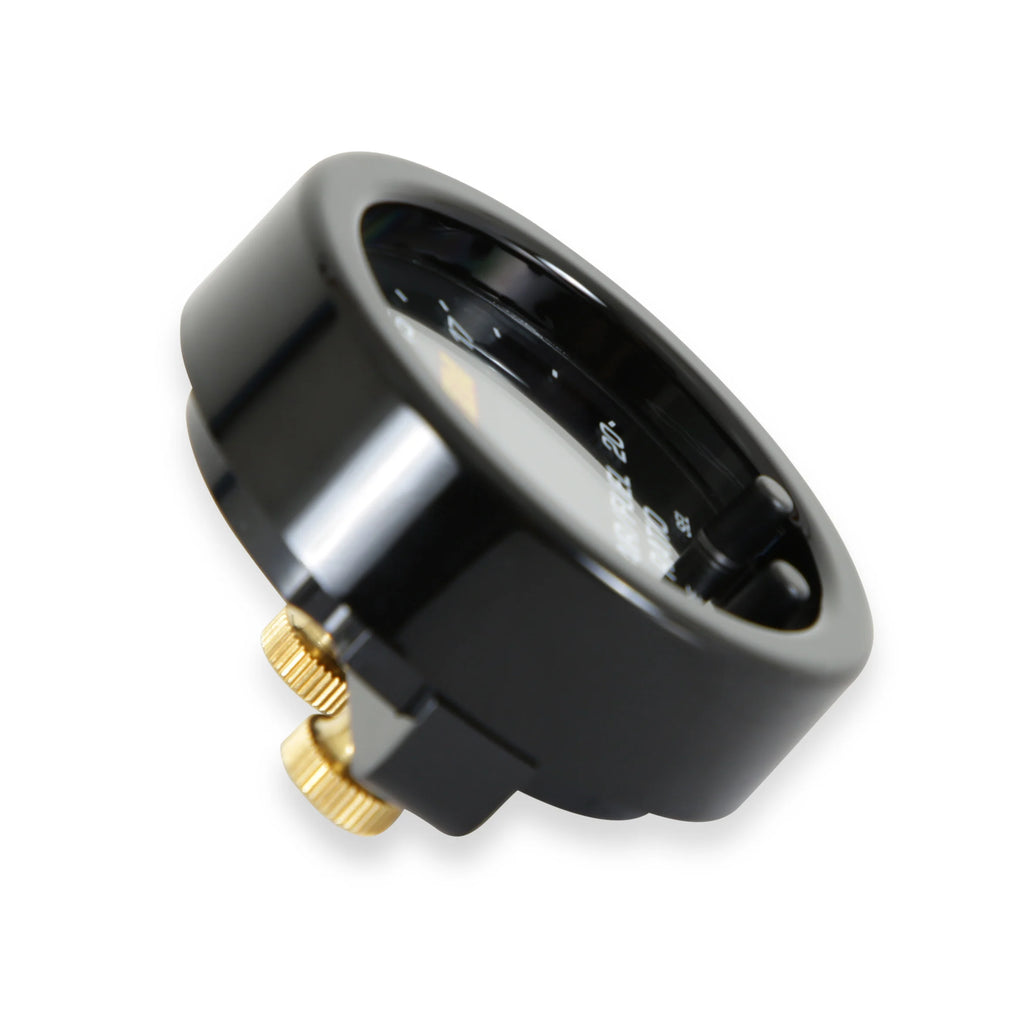

• Gauge Diameter: 2-1/16" (52mm) with ultra-slim 0.200" cup depth

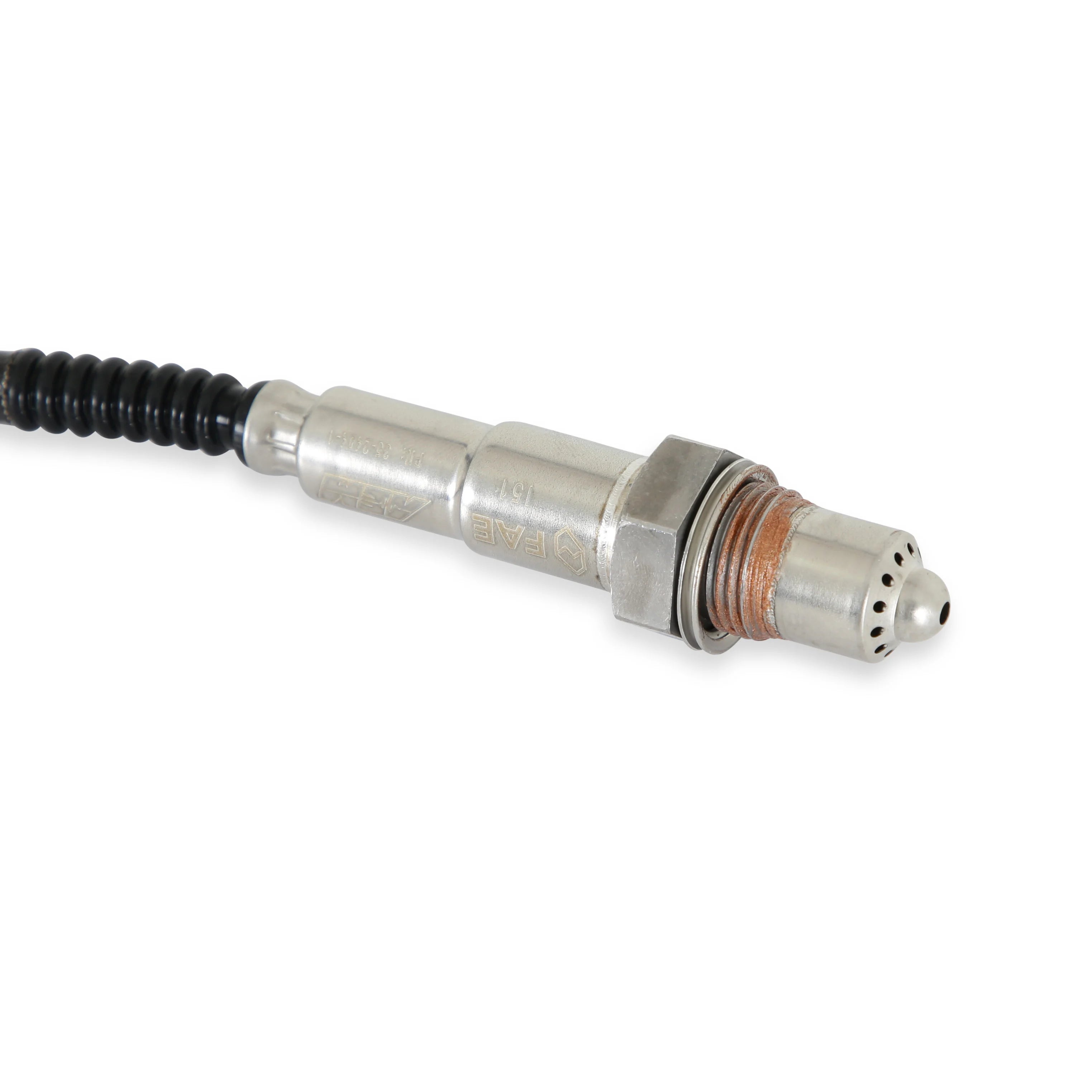

• Sensor Included: Bosch LSU 4.9 Wideband O2 Sensor (with weld-in mild steel bung)

• Calibration: Factory calibrated resistor (integral to the sensor connector). Also supports manual free-air calibration.

• Outputs: 0-5V Analog, RS-232 Serial, and AEMnet (CANbus) for dataloggers/EMS.

Performance & Fitment Features:

• X-Digital Technology: The fastest responding wideband air/fuel ratio controller in independent testing, effectively reducing deadtime and providing safer, more accurate engine tuning.

• CRITICAL SENSOR INSTALLATION WARNING (WELDING REQUIRED): This kit requires welding the included O2 bung into your exhaust system. The sensor MUST be mounted at least 18 inches downstream from the exhaust port (or turbocharger) and MUST be angled at least 10 degrees above the horizontal position. Mounting the sensor at the bottom of the pipe allows exhaust condensation (water) to shock and shatter the internal heated ceramic element. Sensor failure due to thermal shock or water damage is strictly excluded from the manufacturer's warranty.

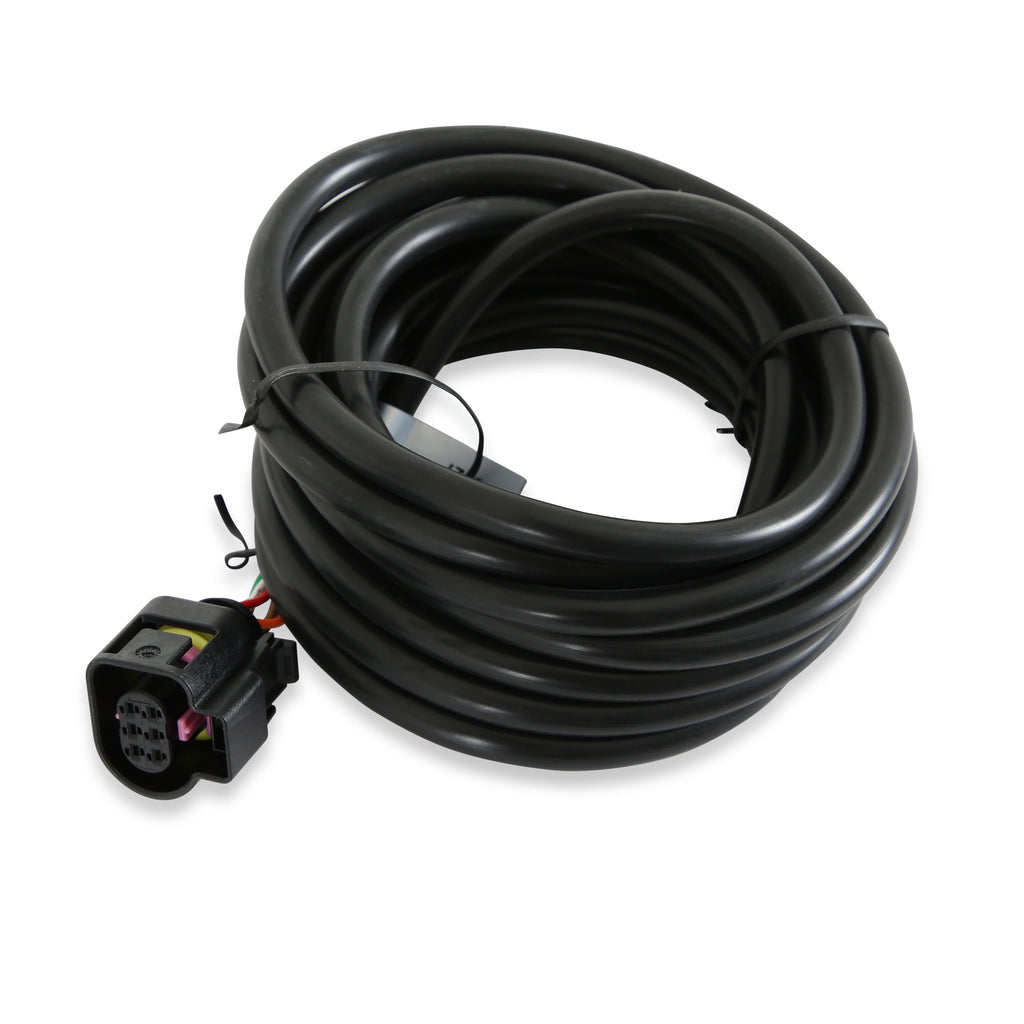

• CRITICAL WIRING WARNING (DO NOT CUT WIRES): The Bosch sensor connector contains a factory-calibrated trim resistor. Under no circumstances should you cut, splice, or modify the sensor wires or connector to pass through a firewall. Doing so instantly destroys the factory calibration and permanently voids the warranty.

• Consumable Component Notice: Oxygen sensors are highly sensitive consumable items. Exposure to leaded racing fuels, two-stroke oil, or excessively rich tuning will drastically reduce the sensor's lifespan.

Federal Emissions Compliance:

• Holley Emissions Code: 5

• Status: This part is classified as a monitoring and diagnostic device. It does not alter, replace, or bypass factory emissions control equipment. It is strictly legal for sale, installation, and street use in all 50 US states, including California. No CARB Executive Order (EO) is required.

Disclaimer & Warranty Information: Onyx Customs FL acts exclusively as an authorized retailer of high-performance automotive electronics. We do not manufacture this product. Exhaust fabrication and electronic wiring carry inherent risk. Improper installation, incorrect sensor angle, or improper wiring will result in immediate sensor failure or inaccurate AFR readings, leading to catastrophic engine damage if used for tuning. Onyx Customs FL assumes no liability for direct or indirect damages, engine rebuilds, or fabrication costs resulting from the incorrect installation or misuse of this component. All manufacturing defects are the responsibility of AEM Performance Electronics. Please note: Bosch LSU 4.9 oxygen sensors are considered consumable items and carry extremely limited warranties. We strictly mandate that all welding and wiring be performed by a certified professional.
