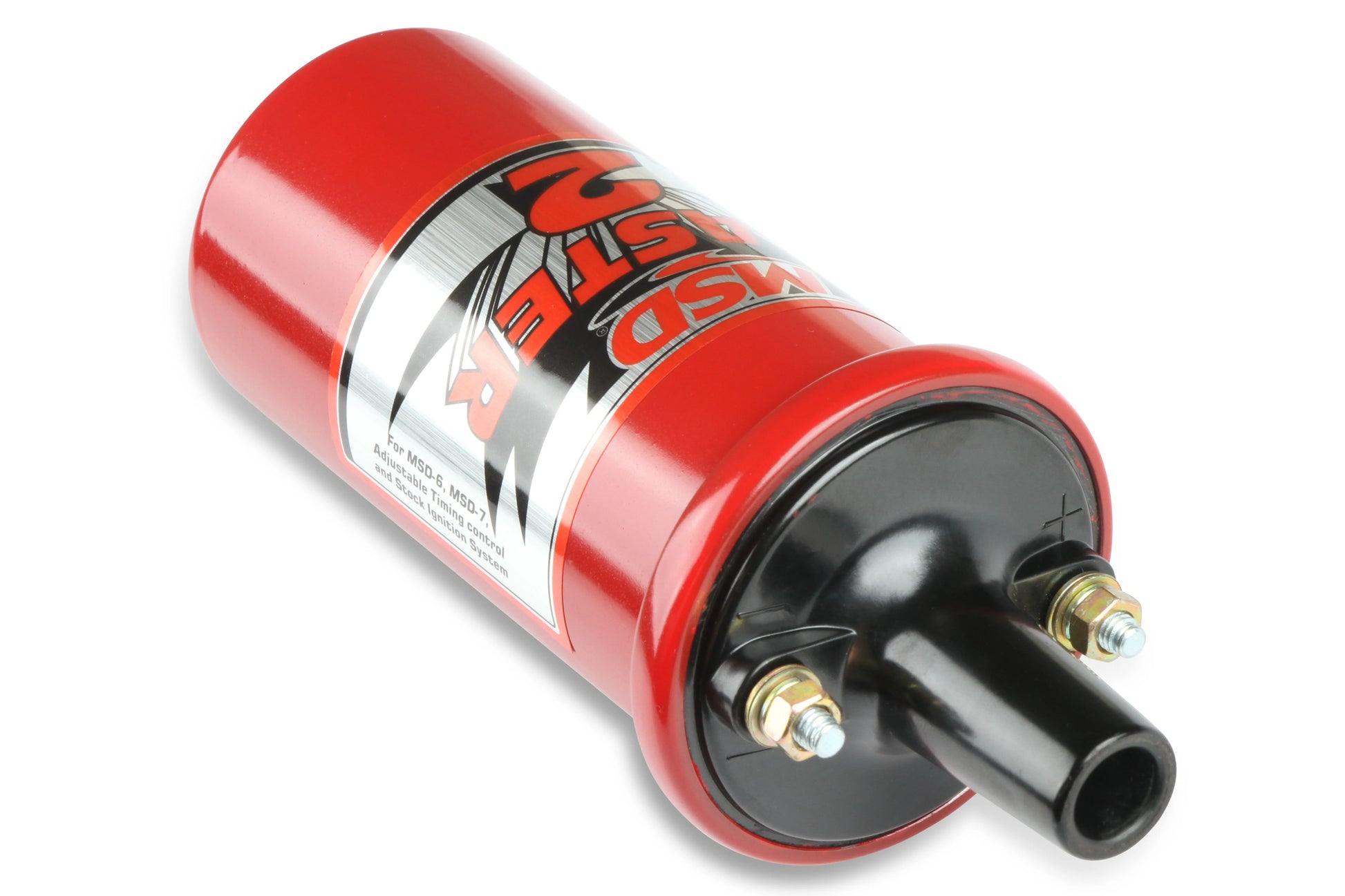

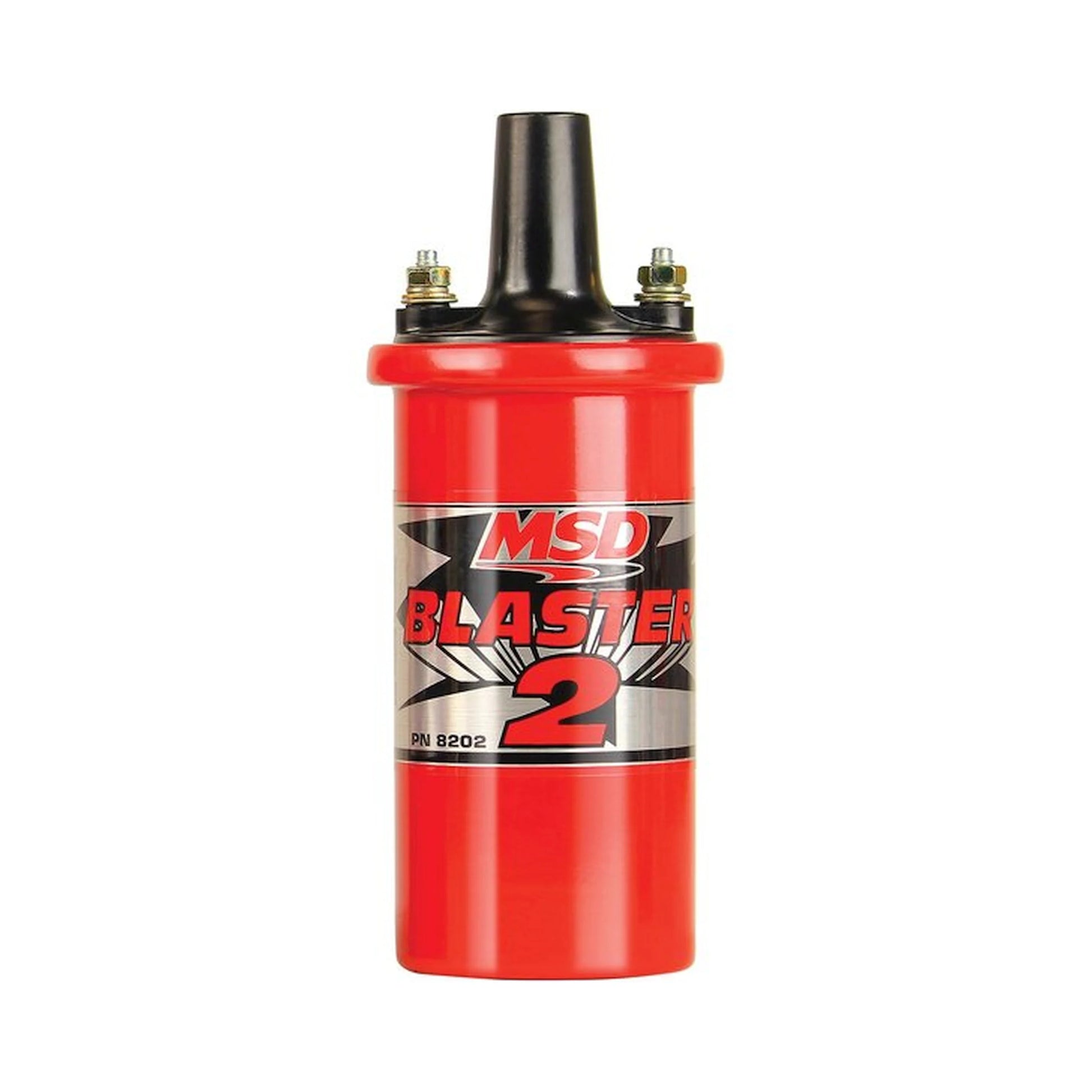

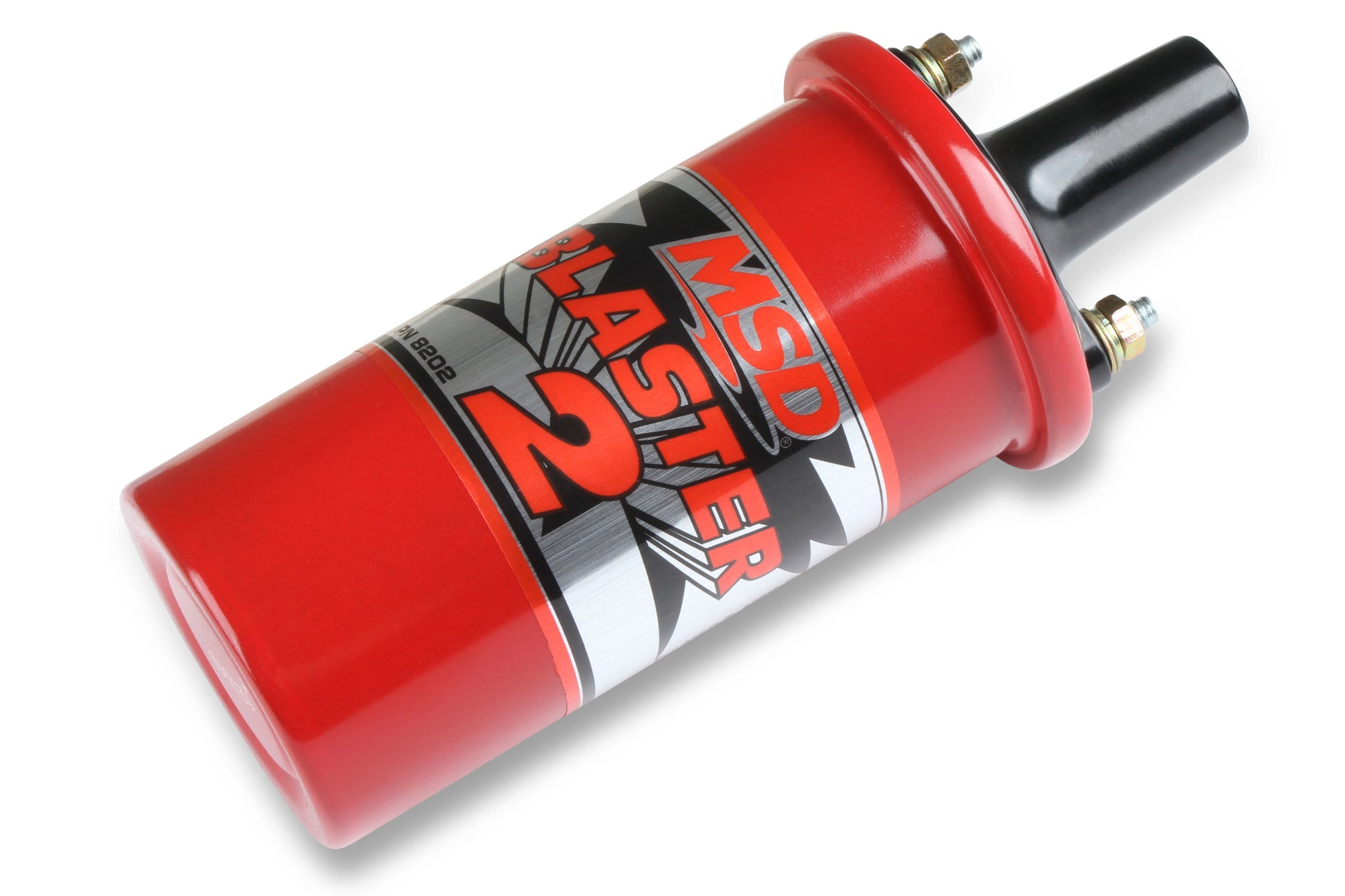

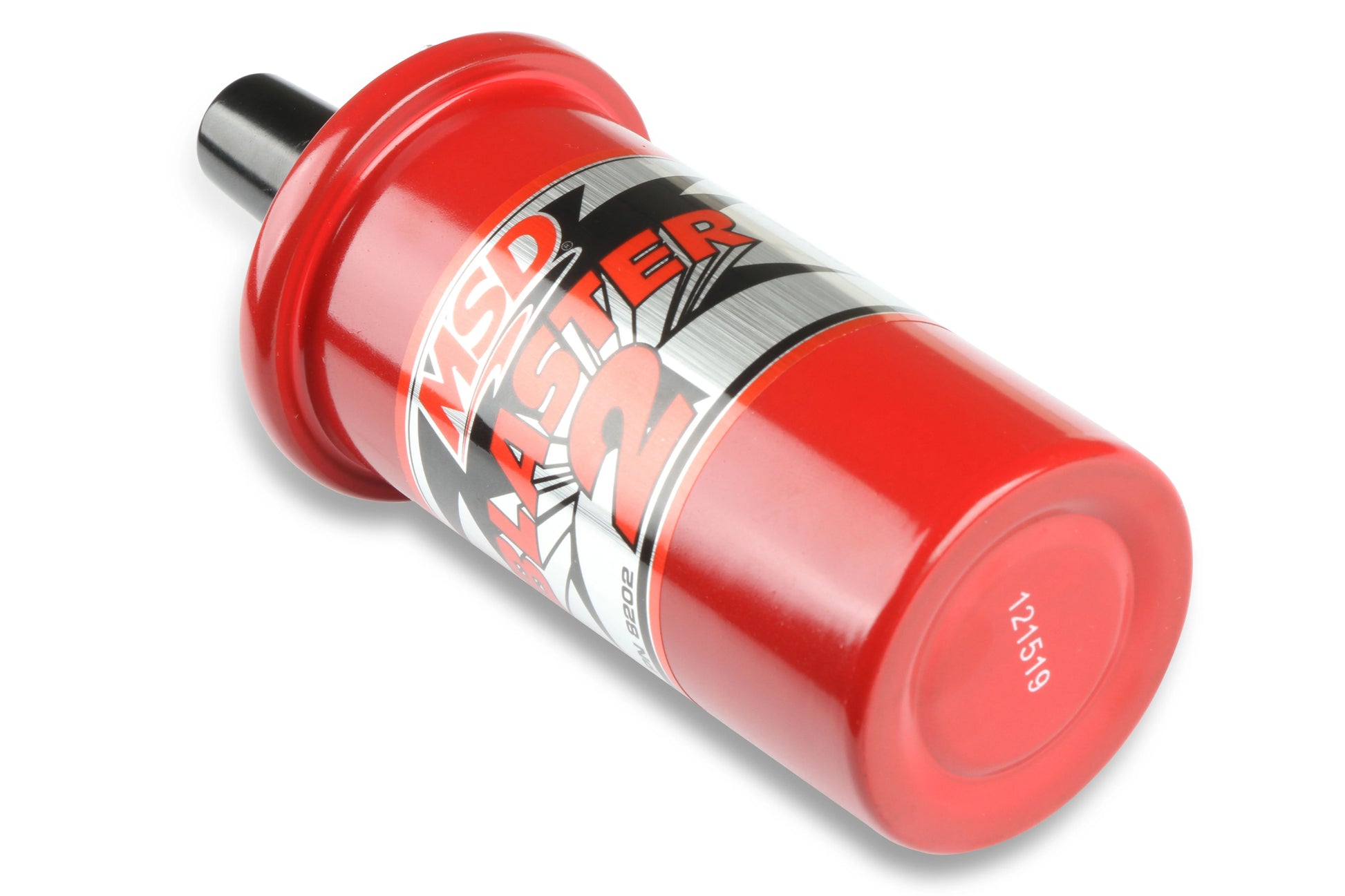

MSD Ignition Coil - Blaster 2

Technical Specifications:

• Brand: MSD Ignition (Holley Performance)

• Part Number (MPN): 8202

• Product Type: Blaster 2 Ignition Coil (Oil-Filled Canister)

• Maximum Output Voltage: 45,000 Volts

• Primary Resistance: 0.7 Ohms

• Secondary Resistance: 4.5K Ohms

• Inductance: 8 mH

• Turns Ratio: 100:1

• Terminal Style: Socket / Female (Traditional style)

• Color: Red

Performance & Fitment Features:

• High-Voltage Winding: Special 100:1 windings are used to provide maximum voltage build-up, housed in a premium-grade oil-filled metal canister for thermal management.

• CRITICAL MOUNTING WARNING: This is an oil-filled coil. It MUST be mounted in a VERTICAL (upright) position. If mounted horizontally, the internal oil will shift, exposing the windings. This will cause the coil to overheat, fail catastrophically, and void all warranties. (If your application requires horizontal mounting, you must purchase the Epoxy-filled High Vibration Coil, MSD PN: 8222).

• Important Electrical Warning (Non-MSD Systems): If you are installing this coil on a classic points-style distributor or a factory electronic ignition system that does NOT have a dedicated MSD Ignition Control Box (like the 6AL), you MUST wire a 0.8 Ohm ballast resistor (MSD PN: 8214) in series on the positive coil wire. Failing to install the resistor will instantly melt the points or destroy the factory ignition module.

Federal Emissions Compliance (CARB):

• Emissions Code: 1

• CARB EO Number: D-40-37

• Status: This part is strictly legal for sale, installation, and street use on Emissions Controlled Vehicles in all 50 US states, including California, when used in accordance with the manufacturer's application guide.

Disclaimer & Warranty Information: Onyx Customs FL acts exclusively as an authorized retailer of high-performance automotive components. We do not manufacture this product. Ignition coils operate under lethal high-voltage conditions. Improper mounting, failing to use a ballast resistor on unsupported factory systems, or altering the coil housing will result in severe electrical shock, catastrophic component failure, or vehicle damage. Onyx Customs FL assumes no liability for direct or indirect damages, electrical fires, or diagnostics costs resulting from the purchase or incorrect installation of this component. All manufacturing defects, technical support, and warranty claims are strictly the responsibility of, and must be directed to, MSD Ignition (Holley Performance). We strictly mandate that all high-voltage electrical components be installed and calibrated by a certified professional automotive electrician.
