Fuel Pump High Flow in Tank

Technical Specifications:

• Brand: AEM Performance Electronics

• Part Number (MPN): 50-1000

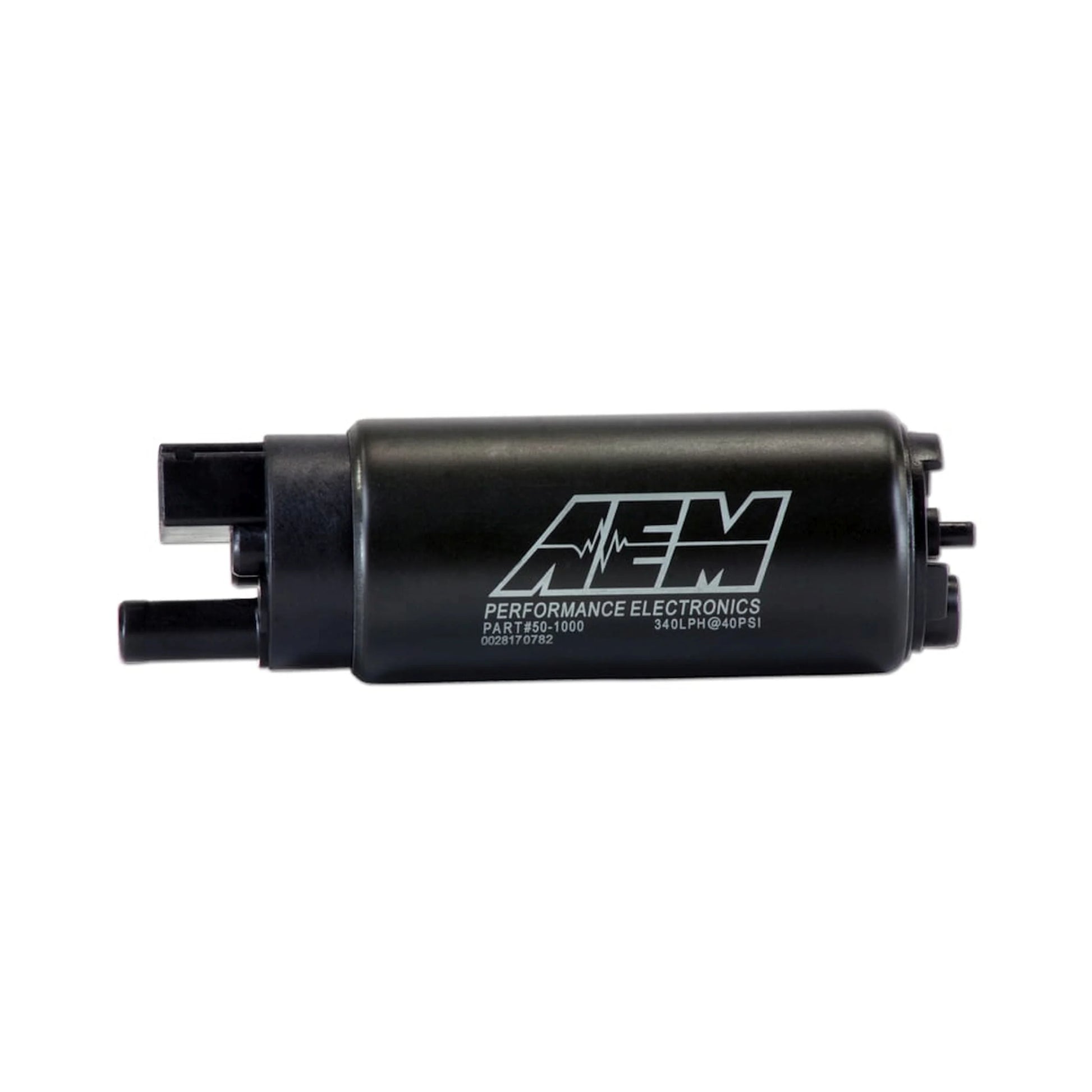

• Product Type: 340 LPH High Flow In-Tank Fuel Pump

• Flow Rate: 340 LPH @ 40 PSI (Capable of supporting up to 1,000 HP)

• Inlet Configuration: 7.7mm ID / 11.0mm OD (Offset Inline)

• Outlet Configuration: 8mm Hose Barb (Offset)

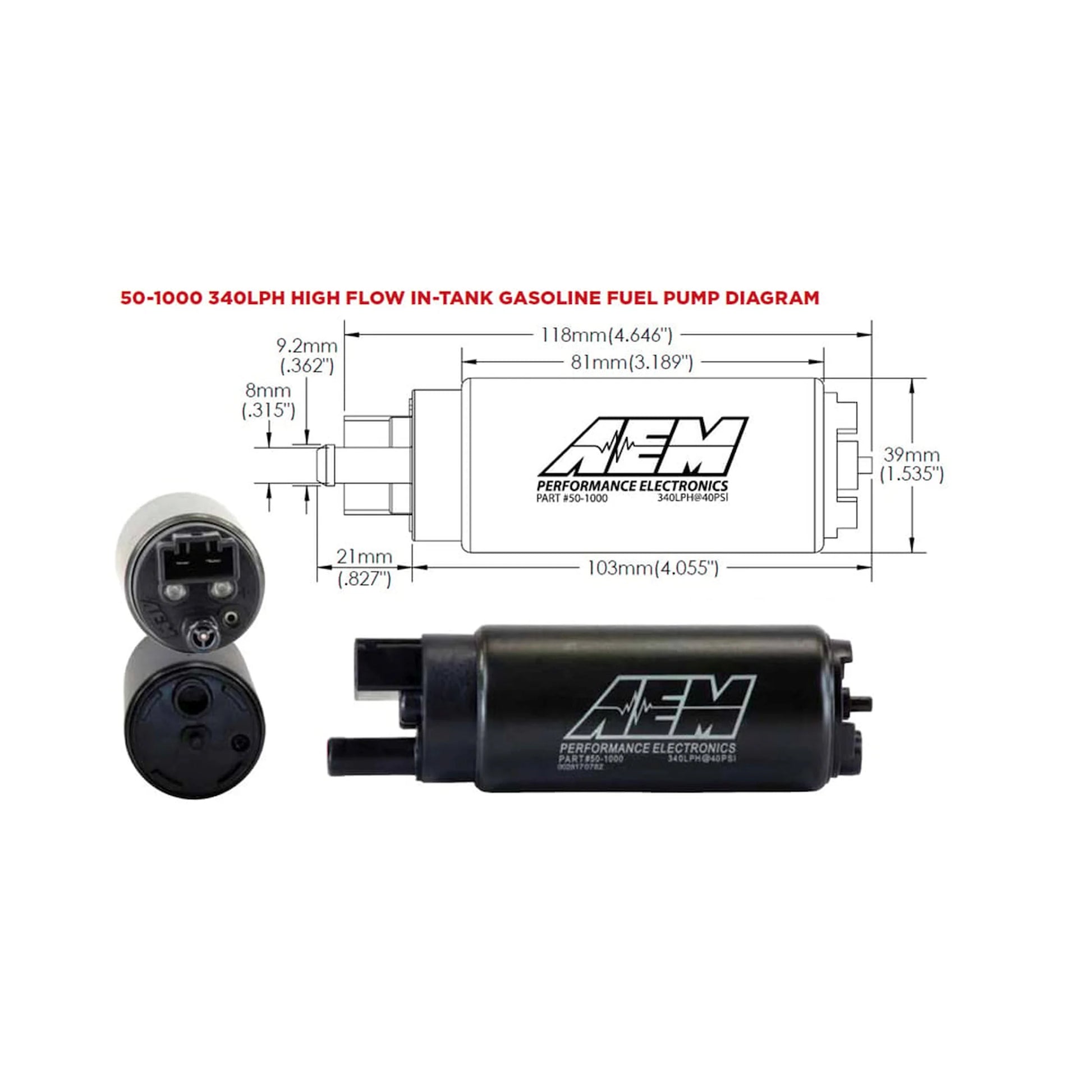

• Dimensions: Compact 39mm Outer Diameter

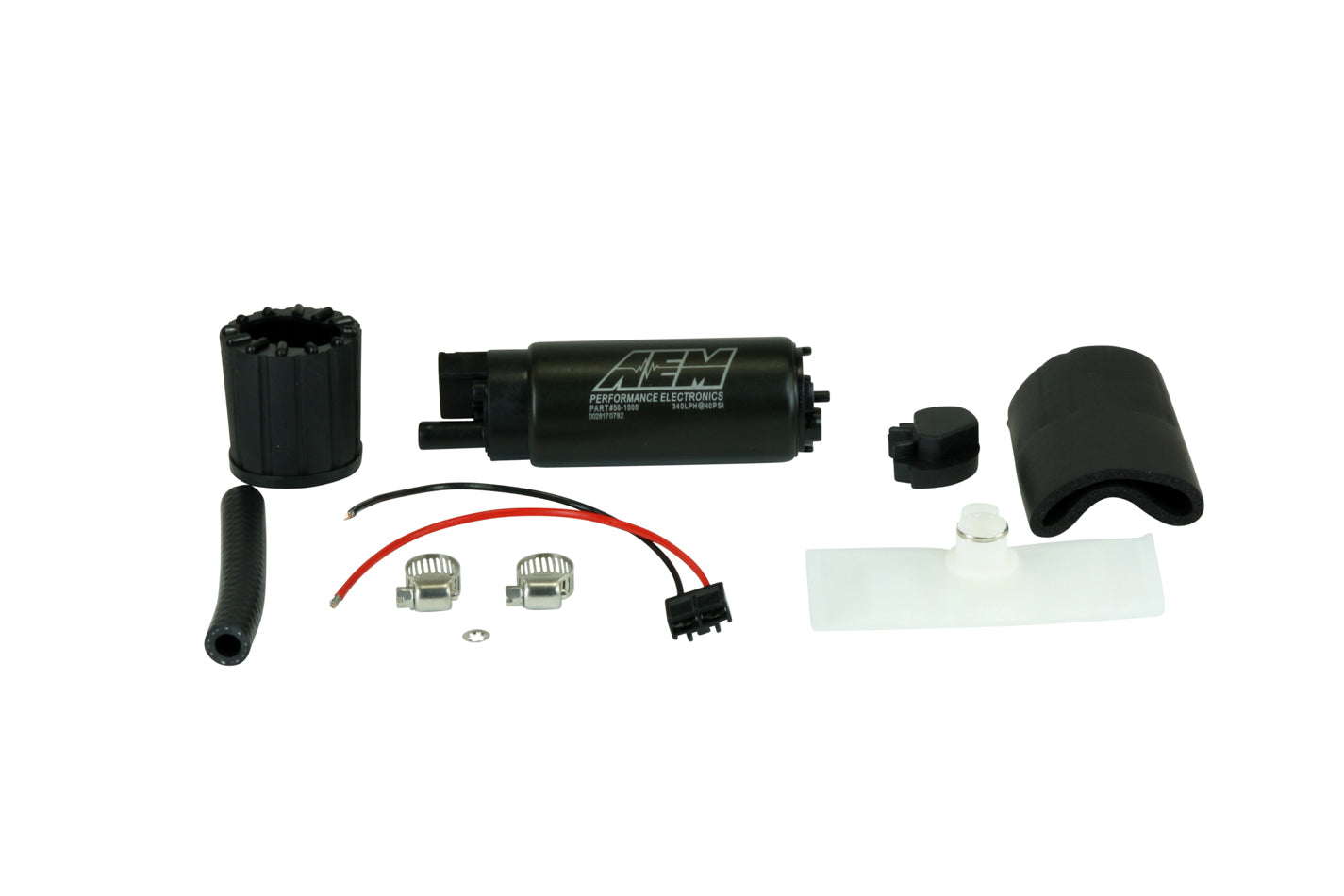

• Included Hardware: Fuel pump, pre-filter sock, rubber isolator sleeve, end caps, and flying lead wiring harness.

Performance & Fitment Features:

• High-Volume Fuel Delivery: Engineered with a single scroll ceramic turbine to provide immense fuel flow for highly modified, naturally aspirated, and forced-induction EFI vehicles.

• CRITICAL FUEL WARNING (GASOLINE ONLY): This specific pump (PN: 50-1000) is engineered strictly for unleaded and race gasoline. It is NOT compatible with E85, Methanol, or Ethanol blends. Running alcohol-based fuels will strip the internal lubrication, destroy the turbine, and immediately void the manufacturer's warranty. (For E85 applications, you must purchase AEM PN: 50-1200).

• CRITICAL ELECTRICAL WARNING (UPGRADED WIRING REQUIRED): This high-flow pump draws significantly more current (up to 15 Amps) than a standard factory pump. You MUST install a dedicated, heavy-duty 20-Amp fused relay harness directly from the battery. Utilizing aged factory wiring will result in severe voltage drops, pump failure, melted harnesses, and potential vehicle fires.

Federal Emissions Compliance:

• Holley Emissions Code: 5

• Status: This is an internal fuel delivery component that does not alter factory emissions control equipment. It is strictly legal for sale, installation, and street use in all 50 US states, including California. No CARB Executive Order (EO) is required.

Disclaimer & Warranty Information: Onyx Customs FL acts exclusively as an authorized retailer of high-performance automotive components. We do not manufacture this product. Modifying pressurized in-tank fuel systems and high-amperage electrical circuits carries extreme risk. Improper installation, utilizing factory wiring for a high-draw pump, or running incompatible fuels (E85) will result in severe electrical fires, engine detonation from fuel starvation, or total vehicle loss. Onyx Customs FL assumes no liability for direct or indirect damages, engine rebuilds, or diagnostics costs resulting from the incorrect installation or misuse of this component. All manufacturing defects and warranty claims are strictly the responsibility of AEM Performance Electronics. We strictly mandate that all fuel system components be installed and calibrated by a certified professional race mechanic.
