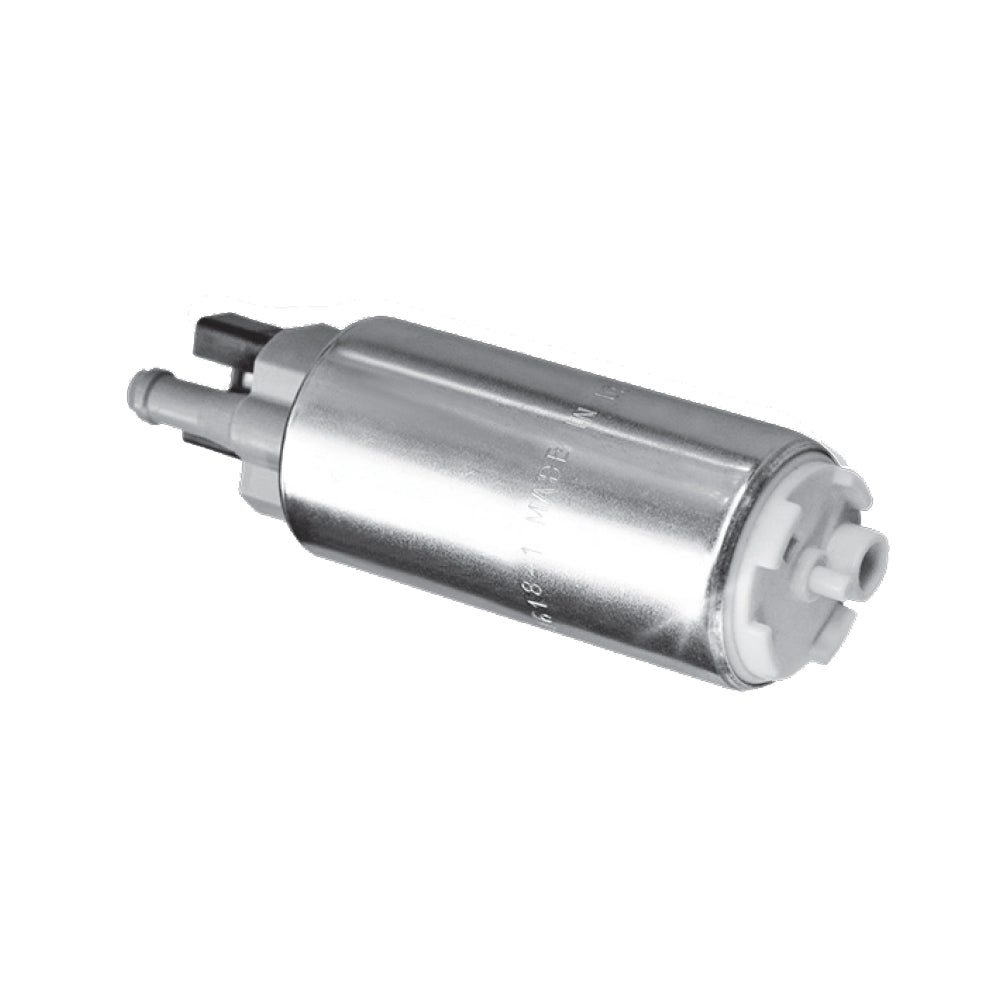

Fuel Pump OFFSET Inlet Gas In-Tank

Technical Specifications:

• Brand: Walbro / TI Automotive

• Part Number (MPN): GSS341G3-3

• Product Type: High Pressure In-Tank Fuel Pump

• Flow Rate: 255 LPH (Liters Per Hour)

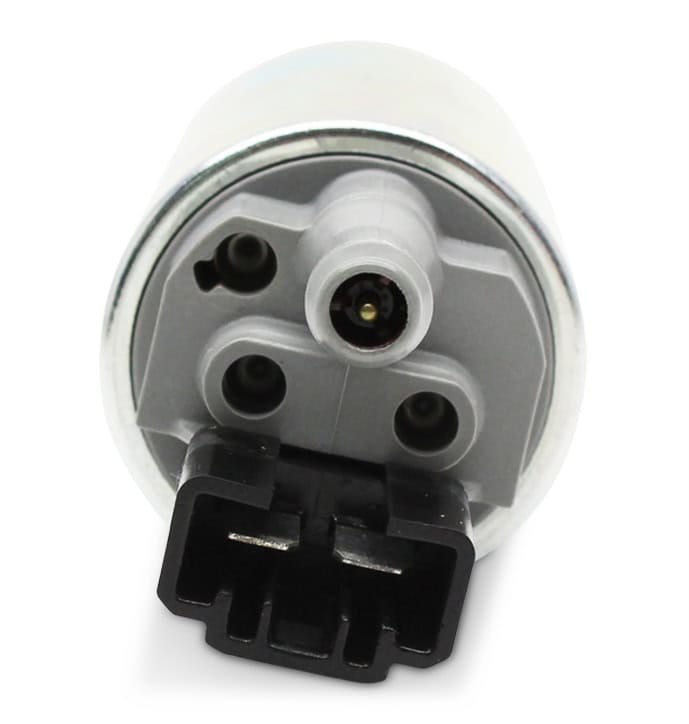

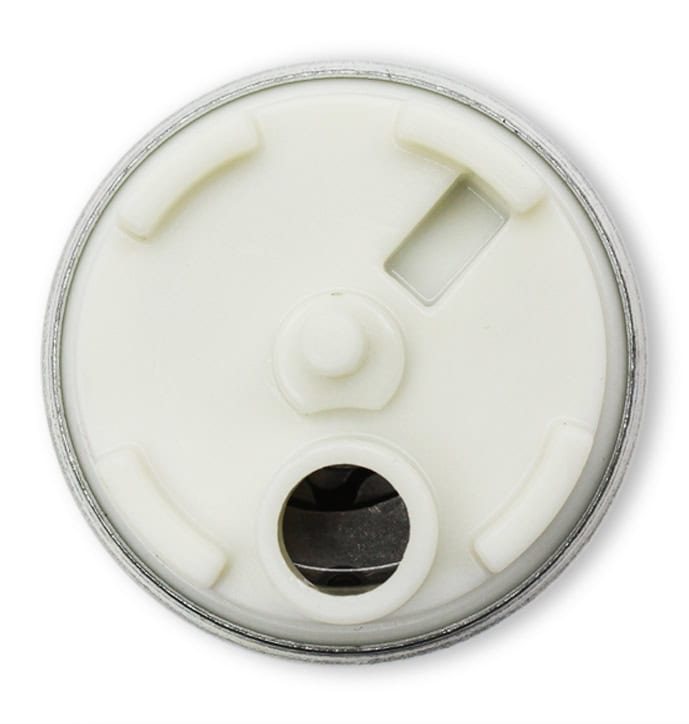

• Inlet Configuration: 22mm OFFSET Inlet (Inlet is NOT inline with the outlet)

• Outlet Configuration: 8mm (5/16") Hose Barb

• Operating Pressure: Designed to support 25-70 PSI systems.

Performance & Fitment Features:

• Critical Fitment Notice (Offset vs. Center): This specific pump (GSS341) features an OFFSET inlet. You must physically inspect your factory fuel pump assembly prior to purchase. If your factory pump has a center inlet, this pump will NOT fit into your fuel bucket and will cause fuel starvation. (If you require a center inlet, purchase PN: GSS342).

• CRITICAL FUEL WARNING: STRICTLY GASOLINE ONLY. This pump is designed exclusively for standard unleaded and race gasoline. It is NOT compatible with E85, Methanol, or high-percentage Ethanol blends. Running alcohol-based fuels will strip the internal lubrication, seize the pump, and immediately void the manufacturer's warranty.

• Installation Protocol: This is an in-tank pump. You MUST use submersible-rated fuel hose (SAE 30R10 specification or PTFE) to connect the pump outlet to your fuel hanger. Standard exterior EFI hose (SAE 30R9) will dissolve when submerged in gasoline.

Federal Emissions Compliance:

• Emissions Code: 5 (Replacement Part)

• Status: This is an internal fuel delivery component that does not alter factory emissions control equipment. It is strictly legal for sale, installation, and street use in all 50 US states, including California. No CARB Executive Order (EO) is required.

Disclaimer & Warranty Information: Onyx Customs FL acts exclusively as an authorized retailer of high-performance automotive components. We do not manufacture this product. STRICT RETURN POLICY: Due to strict federal Department of Transportation (DOT) Hazmat regulations, Onyx Customs FL cannot and will not accept returns for any fuel pump that has been submerged in fuel or smells of gasoline. It is the buyer's absolute responsibility to verify fitment (Offset vs. Center Inlet) BEFORE installation. Improper installation, running incompatible fuels (E85), or failing to use submersible hoses will result in component failure or catastrophic vehicle damage. Onyx Customs FL assumes no liability for direct or indirect damages, engine rebuilds, or diagnostics costs. All manufacturing defects and warranty claims are strictly the responsibility of, and must be directed to, TI Automotive.
